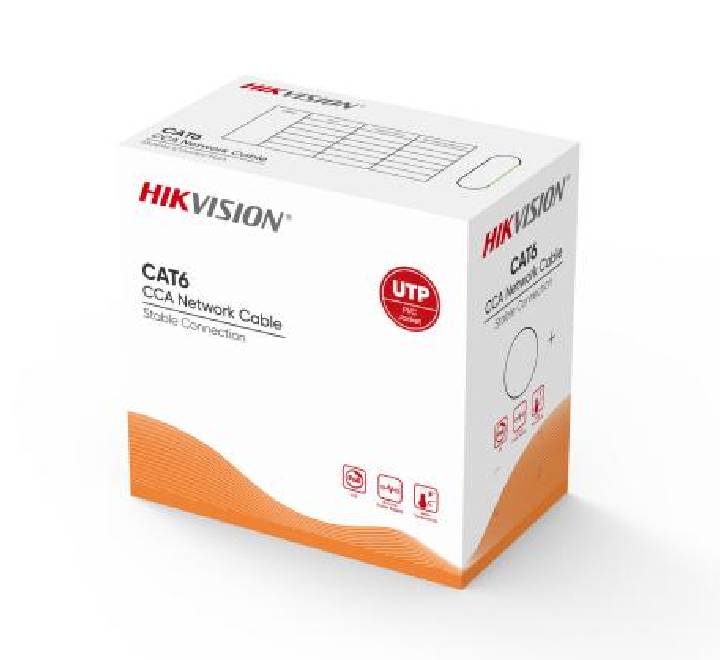

Hikvision DS-1LN6U-W/CCA 305 m CAT6 UTP Network Cable (CCA,0.565 mm)

Hikvision DS-1LN6U-W/CCA 305 m CAT6 UTP Network Cable (CCA,0.565 mm)

• 305 m cost-effective CAT6 CCA network cable

• Full diameter and full length

• Quality verified by Fluke test

• Guaranteed long PoE transmission distance

• General

• Packing:Carton

• Carton Dimension:41x41x24cm

• Packing length:(305±1.5)m

• Rip-cord:Yes

• Drain wire:No

• Sheath Physical Properties

• Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs)
• 100℃×24h×7d,After Aging ,Tensile Strength(Mpa) ≥12.5, variance ratio:±25%,
• Elongation(%) ≥125, variance ratio:±20%,Cold bend(-20±2℃×4h) 8×Cable O.D.，No
• visible cracks,

• Electrical Characteristics (20℃)

• 1.0-100.0MHz Impedance(Ω) 100±15,100 - 250MHz Impedance(Ω) 100±25,1.0-
• 100.0MHz Delay Shew (ns/100m) ≤45,DC ResistanceΩ/100m) max 12,DC Conductor
• Resistance Unbalance(%) max 2,
