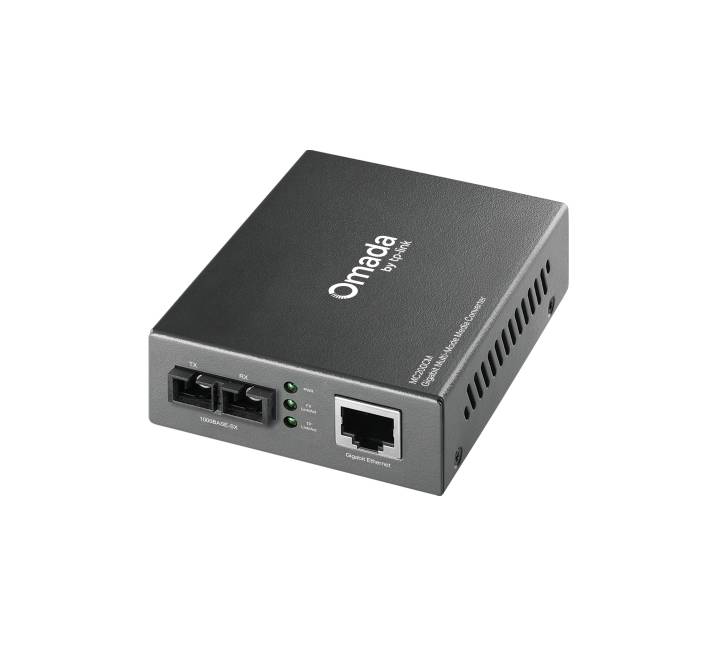

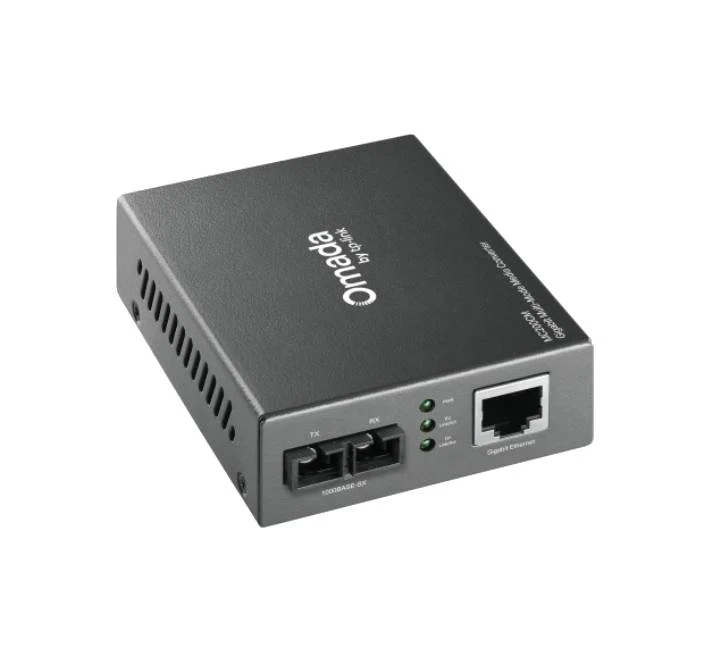

TP-Link MC200CM Gigabit Multi-Mode Media Converter
Seamlessly integrate high-speed fiber infrastructure with your existing copper-based network using the TP-Link MC200CM Gigabit Multi-Mode Media Converter. Fully compliant with IEEE 802.3ab and IEEE 802.3z standards, this professional unmanaged media converter transforms 1000BASE-SX multi-mode fiber to 1000Base-T copper media (and vice versa) with complete transparency. It is the perfect, budget-friendly choice for expanding campus LANs, remote office links, and commercial video surveillance networks.
Key Features
- Blazing-Fast Gigabit Transmission: Features 1× 10/100/1000Mbps Auto-Negotiation RJ45 port and 1× Gigabit SC fiber port, delivering stable, full-duplex gigabit speeds (1000Mbps) for bandwidth-heavy traffic.
- Multi-Mode Fiber Reach: Transmit data securely across extended distances. Extends your network up to 550 meters (1,800 feet) using 50/125μm multi-mode fiber, or up to 220 meters (720 feet) using legacy 62.5/125μm fiber.
- Optimized 850nm Shortwave Laser: Utilizes shortwave (SX) laser specifications operating at a stable 850nm wavelength on both transmitting and receiving data streams.
- Smart Configuration Switch: Features an on-board manual slide switch to configure Force or Auto transfer modes on the FX (fiber) port, ensuring maximum compatibility with connected network hardware.
- Versatile Mounting & Setup: Deploy it as a compact, standalone desktop unit, or mount it into the standard TP-Link TL-MC1400 14-slot system chassis for highly organized, clean server rack setups.
- Instant Plug-and-Play Integration: Zero software installation or complex configuration required. Supports Auto MDI/MDI-X on the TX copper port for hassle-free network patching.
Technical Specifications
| Specification Type | Details |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |

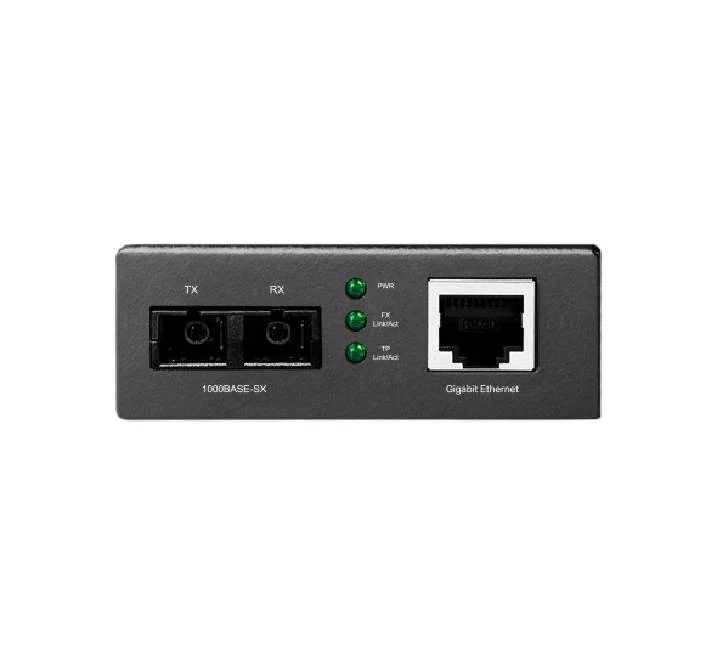

| Interface Ports | 1× 1000M SC/UPC Fiber Port 1× 10/100/1000M RJ45 Port (Auto MDI/MDIX) |
| Wavelength | 850 nm |
| Network Media (1000BASE-SX) | Multi-mode Fiber (OM1, OM2, OM3, OM4) |
| Network Media (1000BASE-T) | UTP Cat 5, 5e, 6 copper cable (Max 100m) / EIA/TIA-568 100Ω STP (Max 100m) |
| Transmission Distance | Up to 550m (using 50/125μm Multi-mode Fiber) Up to 220m (using 62.5/125μm Multi-mode Fiber) |
| Max Power Consumption | 1.66 W |
| Power Supply | External Power Adapter (Output: 9.0V / 0.6A or 5.0V / 0.6A) |
| LED Indicators | PWR (Power), Link/Act (Link Activity) |
| Dimensions (W x D x H) | 3.7 × 2.9 × 1.1 inches (94.5 × 73.0 × 27.0 mm) |
| Safety & Emission | FCC, CE, RoHS |
Original: $230,000.00
-65%$230,000.00
$80,500.00
Description
Seamlessly integrate high-speed fiber infrastructure with your existing copper-based network using the TP-Link MC200CM Gigabit Multi-Mode Media Converter. Fully compliant with IEEE 802.3ab and IEEE 802.3z standards, this professional unmanaged media converter transforms 1000BASE-SX multi-mode fiber to 1000Base-T copper media (and vice versa) with complete transparency. It is the perfect, budget-friendly choice for expanding campus LANs, remote office links, and commercial video surveillance networks.
Key Features
- Blazing-Fast Gigabit Transmission: Features 1× 10/100/1000Mbps Auto-Negotiation RJ45 port and 1× Gigabit SC fiber port, delivering stable, full-duplex gigabit speeds (1000Mbps) for bandwidth-heavy traffic.
- Multi-Mode Fiber Reach: Transmit data securely across extended distances. Extends your network up to 550 meters (1,800 feet) using 50/125μm multi-mode fiber, or up to 220 meters (720 feet) using legacy 62.5/125μm fiber.
- Optimized 850nm Shortwave Laser: Utilizes shortwave (SX) laser specifications operating at a stable 850nm wavelength on both transmitting and receiving data streams.
- Smart Configuration Switch: Features an on-board manual slide switch to configure Force or Auto transfer modes on the FX (fiber) port, ensuring maximum compatibility with connected network hardware.
- Versatile Mounting & Setup: Deploy it as a compact, standalone desktop unit, or mount it into the standard TP-Link TL-MC1400 14-slot system chassis for highly organized, clean server rack setups.
- Instant Plug-and-Play Integration: Zero software installation or complex configuration required. Supports Auto MDI/MDI-X on the TX copper port for hassle-free network patching.
Technical Specifications
| Specification Type | Details |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Interface Ports | 1× 1000M SC/UPC Fiber Port 1× 10/100/1000M RJ45 Port (Auto MDI/MDIX) |
| Wavelength | 850 nm |
| Network Media (1000BASE-SX) | Multi-mode Fiber (OM1, OM2, OM3, OM4) |
| Network Media (1000BASE-T) | UTP Cat 5, 5e, 6 copper cable (Max 100m) / EIA/TIA-568 100Ω STP (Max 100m) |
| Transmission Distance | Up to 550m (using 50/125μm Multi-mode Fiber) Up to 220m (using 62.5/125μm Multi-mode Fiber) |
| Max Power Consumption | 1.66 W |
| Power Supply | External Power Adapter (Output: 9.0V / 0.6A or 5.0V / 0.6A) |
| LED Indicators | PWR (Power), Link/Act (Link Activity) |
| Dimensions (W x D x H) | 3.7 × 2.9 × 1.1 inches (94.5 × 73.0 × 27.0 mm) |
| Safety & Emission | FCC, CE, RoHS |
