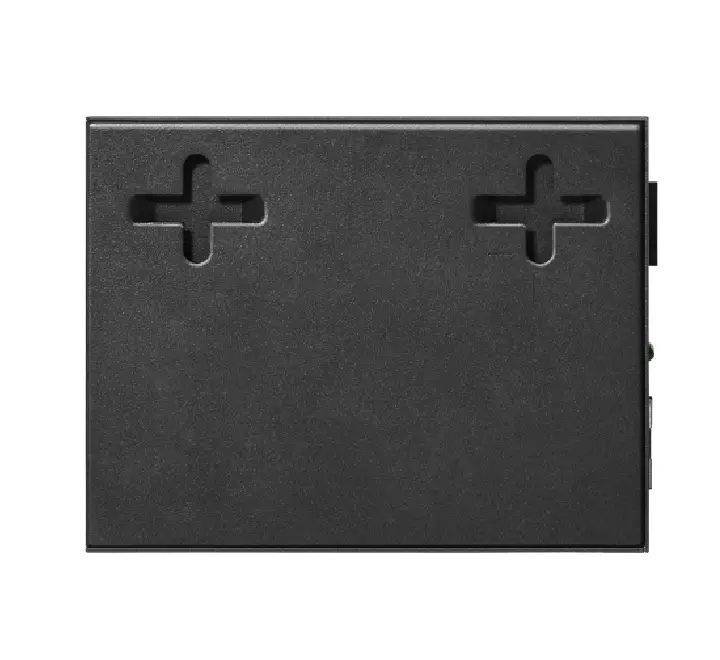

TP-Link MC211CS-20 Omada Gigabit WDM Media Converter | 20km Range
The TP-Link Omada MC211CS-20 is a high-performance Gigabit Media Converter designed to bridge the gap between copper and fiber networking. Featuring advanced WDM (Wave Division Multiplexing) technology, it transmits and receives data over a single strand of fiber, significantly reducing cabling costs while extending your network reach up to 20 kilometers.
Key Features:
- Gigabit Connectivity: Equipped with 1× 10/100/1000Mbps Auto-Negotiation RJ45 port (supporting Auto-MDI/MDIX) and 1× Gigabit SC/UPC fiber port.
- WDM Technology: Efficiently uses a single fiber core for bi-directional data transfer (Transmits at 1550nm, Receives at 1310nm).
- Long-Range Extension: Ideal for connecting remote buildings, outdoor surveillance systems, or factory automation over distances up to 20km.
- Plug & Play: No configuration required; auto-negotiation of Half-Duplex/Full-Duplex transfer modes ensures seamless integration.
- Compact Desktop Design: Durable metal casing that fits easily into existing setups or the TP-Link 19-inch rackmount chassis.
Technical Specifications:
| Interface | 1× Gigabit SC/UPC Port, 1× 10/100/1000M RJ45 Port |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z |
| Wavelength | 1550nm TX, 1310nm RX |
| Network Media | Single-Mode Fiber (9/125 μm) |
| Max Distance | 20 km (12.4 miles) |
| LED Indicators | PWR, Link/Act |
| Power Supply | External Power Adapter: 9V / 0.6A |
| Dimensions | 94.5 x 73 x 27 mm (3.7 x 2.9 x 1.1 in) |
| Environment | Operating Temp: -5°C to 50°C (23°F to 122°F) |
$78,750.00
Original: $225,000.00
-65%TP-Link MC211CS-20 Omada Gigabit WDM Media Converter | 20km Range—
$225,000.00
$78,750.00
Description
The TP-Link Omada MC211CS-20 is a high-performance Gigabit Media Converter designed to bridge the gap between copper and fiber networking. Featuring advanced WDM (Wave Division Multiplexing) technology, it transmits and receives data over a single strand of fiber, significantly reducing cabling costs while extending your network reach up to 20 kilometers.
Key Features:
- Gigabit Connectivity: Equipped with 1× 10/100/1000Mbps Auto-Negotiation RJ45 port (supporting Auto-MDI/MDIX) and 1× Gigabit SC/UPC fiber port.
- WDM Technology: Efficiently uses a single fiber core for bi-directional data transfer (Transmits at 1550nm, Receives at 1310nm).
- Long-Range Extension: Ideal for connecting remote buildings, outdoor surveillance systems, or factory automation over distances up to 20km.
- Plug & Play: No configuration required; auto-negotiation of Half-Duplex/Full-Duplex transfer modes ensures seamless integration.
- Compact Desktop Design: Durable metal casing that fits easily into existing setups or the TP-Link 19-inch rackmount chassis.
Technical Specifications:
| Interface | 1× Gigabit SC/UPC Port, 1× 10/100/1000M RJ45 Port |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z |
| Wavelength | 1550nm TX, 1310nm RX |
| Network Media | Single-Mode Fiber (9/125 μm) |
| Max Distance | 20 km (12.4 miles) |
| LED Indicators | PWR, Link/Act |
| Power Supply | External Power Adapter: 9V / 0.6A |
| Dimensions | 94.5 x 73 x 27 mm (3.7 x 2.9 x 1.1 in) |
| Environment | Operating Temp: -5°C to 50°C (23°F to 122°F) |
