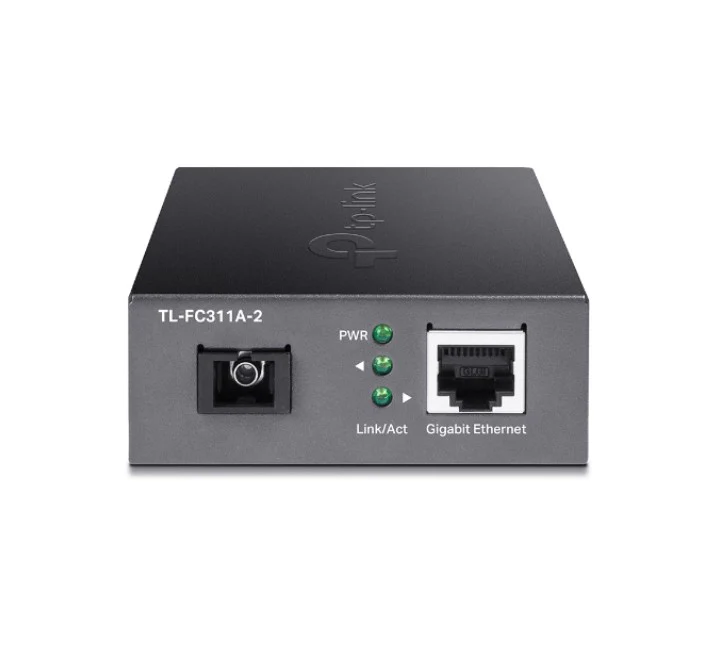

TP-Link TL-FC311A-2 Gigabit WDM Media Converter
Convert, extend, and secure your long-distance networking infrastructure with the TP-Link TL-FC311A-2 Gigabit WDM Media Converter. Built to facilitate commercial-grade fiber deployments—such as campus enterprise networks, park surveillance systems, and remote office connections—this unmanaged media converter seamlessly bridges standard copper RJ45 connections and single-mode optical fiber lines.
Key Features
- High-Speed Gigabit Networking: Features 1× 10/100/1000Mbps Auto-Negotiation RJ45 port (supporting Auto-MDI/MDIX) and 1× Gigabit SC Fiber Port to handle bandwidth-intensive tasks without lag.
- Efficient Single-Strand WDM Tech: Employs Wavelength Division Multiplexing (WDM) to transmit and receive data over a single physical optical fiber strand. This reduces installation complexity and cuts physical cabling costs by 50% compared to traditional dual-strand networks.
- Long-Range Data Transmission: Securely bypasses the 100-meter copper transmission limit, converting and extending gigabit signals up to 2 km over single-mode fiber cabling.
- Optimized Wavelength Pairing: Transmits data at 1550 nm (TX) and receives data at 1310 nm (RX). Designed to seamlessly pair with its physical counterpart terminal device, the TL-FC311B-2 (which transmits at 1310 nm and receives at 1550 nm).
- Versatile Mounting Options: Operates as a compact, standalone desktop unit or integrates cleanly into standard enterprise environments using TP-Link's TL-FC1420 rackmount chassis.
- Zero Configuration Setup: Enjoy effortless, plug-and-play installation with built-in auto-negotiation for Half-Duplex and Full-Duplex transfer modes.
Technical Specifications
| Specification Type | Details |
|---|---|
| Network Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Hardware Interface | 1× Gigabit SC Fiber Port 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media Compatibility | Single-mode Fiber (9/125 μm) UTP Category 5, 5e, or 6 copper cable (Max 100m) |
| Wavelengths | 1550 nm TX (Transmit) / 1310 nm RX (Receive) |
| Max Transmission Distance | Up to 2 km over single-mode fiber |
| Power Supply | External Power Adapter: 5 V / 0.6 A |
| LED Indicators | PWR (Power), Link/Act (Network Link Activity) |
| Dimensions (W x D x H) | 3.7 × 2.9 × 1.1 inches (94.5 × 73.0 × 27.0 mm) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
$63,000.00
Original: $180,000.00
-65%TP-Link TL-FC311A-2 Gigabit WDM Media Converter—
$180,000.00
$63,000.00
Description
Convert, extend, and secure your long-distance networking infrastructure with the TP-Link TL-FC311A-2 Gigabit WDM Media Converter. Built to facilitate commercial-grade fiber deployments—such as campus enterprise networks, park surveillance systems, and remote office connections—this unmanaged media converter seamlessly bridges standard copper RJ45 connections and single-mode optical fiber lines.
Key Features
- High-Speed Gigabit Networking: Features 1× 10/100/1000Mbps Auto-Negotiation RJ45 port (supporting Auto-MDI/MDIX) and 1× Gigabit SC Fiber Port to handle bandwidth-intensive tasks without lag.
- Efficient Single-Strand WDM Tech: Employs Wavelength Division Multiplexing (WDM) to transmit and receive data over a single physical optical fiber strand. This reduces installation complexity and cuts physical cabling costs by 50% compared to traditional dual-strand networks.
- Long-Range Data Transmission: Securely bypasses the 100-meter copper transmission limit, converting and extending gigabit signals up to 2 km over single-mode fiber cabling.
- Optimized Wavelength Pairing: Transmits data at 1550 nm (TX) and receives data at 1310 nm (RX). Designed to seamlessly pair with its physical counterpart terminal device, the TL-FC311B-2 (which transmits at 1310 nm and receives at 1550 nm).
- Versatile Mounting Options: Operates as a compact, standalone desktop unit or integrates cleanly into standard enterprise environments using TP-Link's TL-FC1420 rackmount chassis.
- Zero Configuration Setup: Enjoy effortless, plug-and-play installation with built-in auto-negotiation for Half-Duplex and Full-Duplex transfer modes.
Technical Specifications
| Specification Type | Details |
|---|---|
| Network Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Hardware Interface | 1× Gigabit SC Fiber Port 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media Compatibility | Single-mode Fiber (9/125 μm) UTP Category 5, 5e, or 6 copper cable (Max 100m) |
| Wavelengths | 1550 nm TX (Transmit) / 1310 nm RX (Receive) |
| Max Transmission Distance | Up to 2 km over single-mode fiber |
| Power Supply | External Power Adapter: 5 V / 0.6 A |
| LED Indicators | PWR (Power), Link/Act (Network Link Activity) |
| Dimensions (W x D x H) | 3.7 × 2.9 × 1.1 inches (94.5 × 73.0 × 27.0 mm) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
