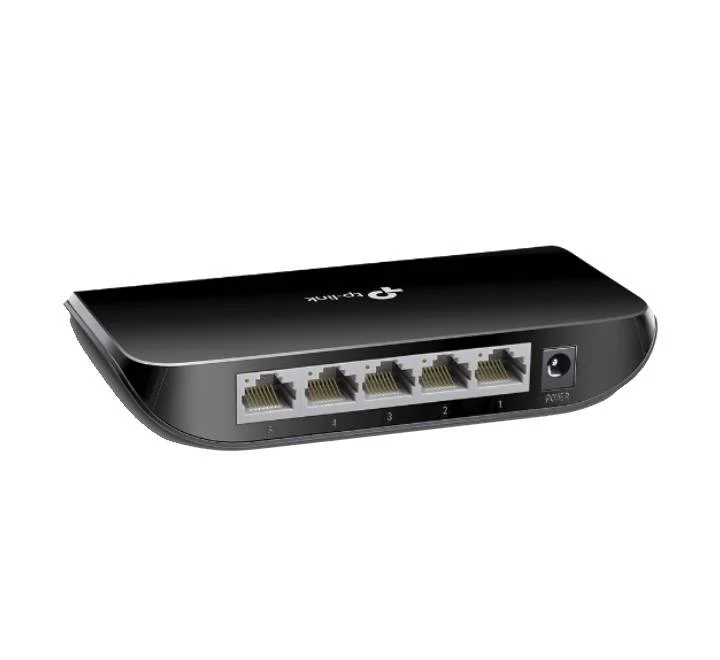

TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
Upgrade Your Network Infrastructure to Blazing Gigabit Speeds with the TP-Link TL-SG1005D
The TP-Link TL-SG1005D is a high-performance, unmanaged 5-port gigabit desktop switch designed to seamlessly expand your wired home or office network. Featuring five 10/100/1000Mbps auto-negotiation ports, this plug-and-play switch allows you to transfer large, bandwidth-heavy files instantly without any configuration. Whether you are connecting smart TVs, gaming consoles, network-attached storage (NAS), or computers, it delivers maximum wire-speed performance while consuming minimal power.
Key Features
- Full Gigabit Performance: Equipped with 5 non-blocking 10/100/1000Mbps ports that drastically increase your network capacity, transferring graphics, CGI, CAD, or multimedia files over the network in seconds.
- Eco-Friendly Green Ethernet Technology: Automatically adjusts power consumption according to link status and cable length. It powers down idle ports and optimizes energy usage to lower your overall carbon footprint.
- Intelligent Traffic Control (802.3x Flow Control): Uses IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode to eliminate data packet congestion, ensuring reliable network data transmissions.
- Zero Setup Plug-and-Play Architecture: No software or complicated technical setup required. Auto MDI/MDIX eliminates the need for crossover cables, while auto-negotiation senses the link speed of network devices for optimized compatibility.
- Fanless Silent Deployment: Housed in an elegant, compact plastic casing with a fanless design that guarantees absolute silence, making it ideal for quiet desktop setups, bedroom workspaces, or conference tables.
Technical Specifications Table
| Hardware Component | Technical Parameters |
|---|---|
| Network Interface | 5× 10/100/1000Mbps RJ45 Ports (Auto Negotiation, Auto MDI/MDIX) |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Switching Capacity | 10 Gbps Backplane Switching Architecture |
| Packet Forwarding Rate | 7.4 Mpps (Million Packets Per Second) |
| MAC Address Table | 2K Capacity Table with Auto-Learning and Auto-Aging features |
| Jumbo Frame Size | 16 KB Buffer for improved large file transfer performance |
| Advanced Features | • Green Ethernet Energy Saving Technology • 802.3X Flow Control Architecture • Backpressure Congestion Mitigation |
| Thermal & Fan Design | Fanless Passive Cooling for complete operating silence |
| Power Supply Input | External Power Adapter (Output: 5.0VDC / 0.6A) |
$245,000.00
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch—
$245,000.00
