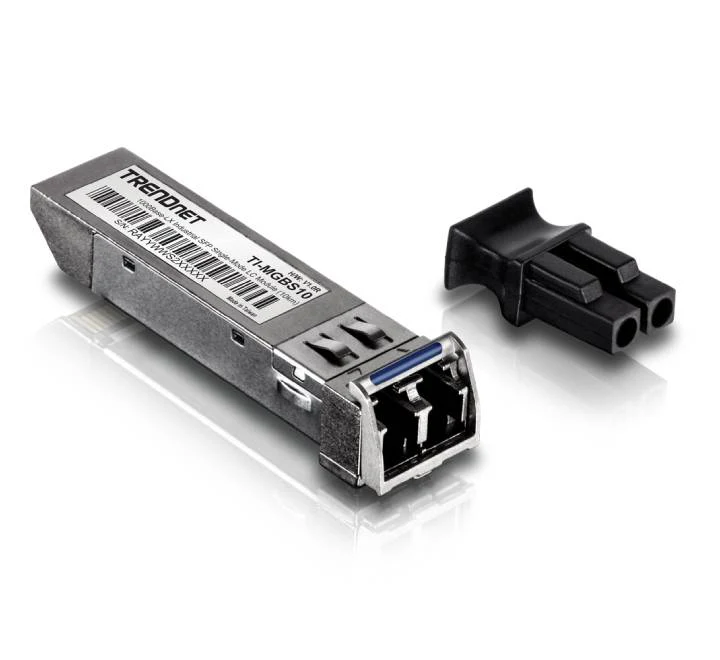

TRENDnet Hardened Industrial SFP Single-Mode LC Module 10km (TI-MGBS10)
Hardened Long-Distance Industrial Gigabit Fiber Connectivity Up to 10km
The TRENDnet TI-MGBS10 Hardened Industrial SFP Single-Mode LC Module is an industry-grade, hot-pluggable Small Form-Factor Pluggable (SFP) Mini-GBIC transceiver engineered for absolute performance in extreme environments. Designed to fit into any standard MSA-compliant SFP slot found on industrial switches, routers, and fiber media converters, this module provides an ultra-reliable, high-speed backbone transition over single-mode fiber infrastructure.
Equipped with a duplex LC optical interface, the TI-MGBS10 operates at a 1310nm wavelength to enable low-latency 1.25Gbps Gigabit Ethernet transmissions over single-mode fiber lines spanning up to 10 kilometers (6.2 miles). Built for mission-critical reliability, its rugged metal housing features low-EMI (Electromagnetic Interference) characteristics and a wide operating temperature range of -40° to 85°C, making it the perfect choice for factory floors, traffic control enclosures, and outdoor surveillance networks.
Key Product Features
- 10km Industrial Range: Extends gigabit network segments across long distances up to 10km (6.2 miles)—perfect for remote field installations and vast industrial complexes.
- Extreme Temperature Resilience: Engineered to function flawlessly under extreme environmental stress, tracking temperature variations from -40° to 85°C (-40° to 185°F).

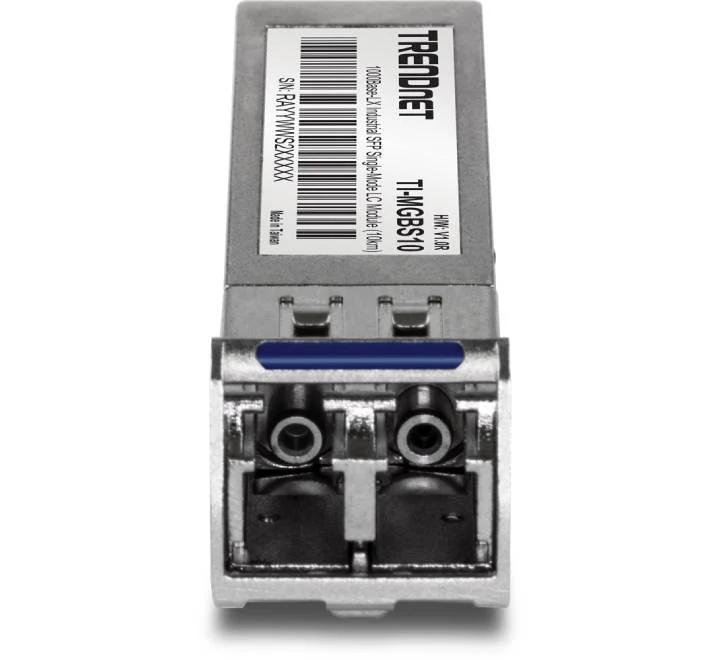

- Duplex LC Interface: Features an industry-standard LC-type duplex connection point for secure, precise fiber-optic connection seating.
- MSA & SFP Compliant: Fully compliant with Multi-Source Agreement (MSA) and SFP standards to guarantee broad, plug-and-play hardware cross-compatibility.
- Hot-Pluggable Architecture: Swap or replace transceiver modules safely in real-time without shutting down your switch or interrupting existing network operations.
- Low-EMI Metal Housing: Encased in a rugged metal shell that delivers superior shielding against harsh industrial electrical noise and signal degradation.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Device Interface | SFP MSA Compliant / LC-Type Duplex optical interface |
| Data Transfer Rate | 1.25Gbps (Gigabit Ethernet) | 1.0625Gbps (Fiber Channel Compliant) |
| Wavelength & Fiber Type | 1310nm / Single-Mode Fiber (SMF) |
| Max. Distance Coverage | Up to 10km (6.2 miles) |
| Optical Output Power | -9 ~ -3 dBm |
| Receiver Sensitivity | -23 dBm (Power Budget link margins: 14dB) |
| Standards Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, ANSI Fiber Channel, MSA SFP |
| Power Consumption | Max. 1.0W (Single 3.3V supply operating voltage profile) |
| Environmental Limits | Operating Temp: -40° to 85° C (-40° to 185° F) | Max. 95% non-condensing humidity |
| Physical Dimensions | 57 x 13 x 12mm (2.2 x 0.5 x 0.5 in.) | Weight: 18g (0.6 oz.) |
| Certifications & Protection | CE, FCC compliant | TRENDnet Lifetime Protection Manufacturer Warranty |
Original: $300,000.00
-65%$300,000.00
$105,000.00
